原版的講義做得十分精美，可以很快了解

Chap01 Introduction

課堂討論：學習的定義

  1. 從不會到會
  2. 從會到更進步、熟練

課堂討論：學習的方法

  • 以「樹的定義」為例
  • 如何寫出「能判斷是否是樹」的程式？
    1. define trees and hand-program: difficult
    2. learn from data by observation and recognize: more easier(機器「自己」學習)

課堂討論：兩種學習方法

  • 電腦: learn from data -> get knowledge by observing
  • 人腦: learn from teachers -> get the essence of the knowledge(can computer do that?)

key eassence of ML

  1. 存在「潛藏模式」可以學習
    • 若認為有「潛藏模式」，才需要學習
  2. 無法簡單定義
  3. 有可提供學習的資料

ML使用時機

  • 人類無法操作
    • 火星探索
  • 難以定義的問題
    • 視覺/聽覺辨識
  • 需要快速判斷
    • 股票炒短線程式
  • 大量資料
    • 個人化使用者體驗

ML應用

推薦系統
將物品分解成各個porperty factors，形成vector，並與自己的喜好vector比較

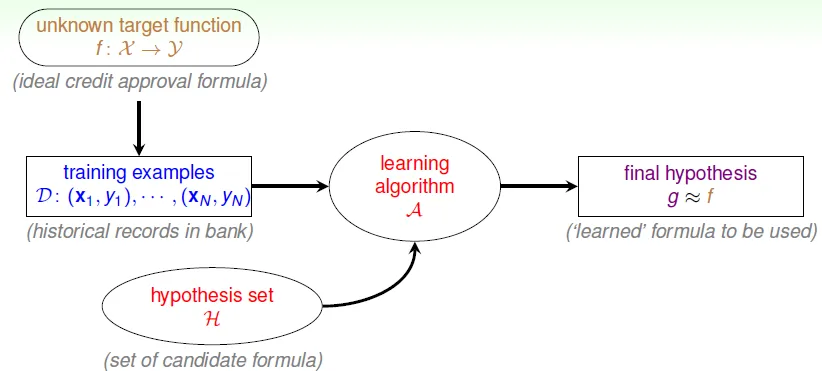

formalize the learning problem

  • target funcion f
    • unknown pattern to be learned
  • data D
    • training examples
  • hypothesis set h
    • candidate functions to be choosed
  • hypothesis g
    • best candidate function which is learned from data
  • use algorithm(A) with data(D) and hypothesis set(H) to get g

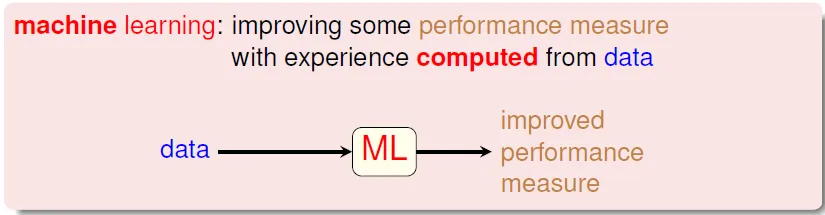

Machine Learning:

use data to compute hypothesis g that approximates target f

Differences

Machine Learning & Data Mining

ML: the same as above
DM: use huge data to find property that is interesting

Machine Learning & Artificial Intelligence

AI -> compute something that shows intelligent behavior

ML can realize AI
traditional AI -> game tree
ML -> learning (techiniques) from board data

Machine Learning & Statistics

Statistics: use data to make inference about an unknown process
-> many useful tools for ML

課堂討論：Big Data

  • As data getting bigger, the way to deal with data has to be changed.(such as distributed computation)
  • not a new topic
  • marketing buzz word
    課堂討論：Maching Learning & Neural Network
  • A technique used in early AI and ML

Chap 02 Perceptron(感知器)

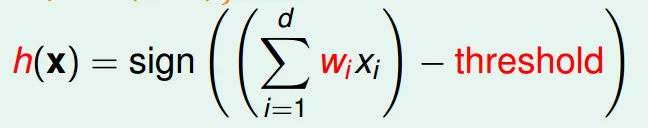

yes/no question by grading

用feature(特質)來分隔兩種不同的結果

  • x: input
  • w: hypothesis
  • x是在d維度空間的點(d個features)，w為分隔此空間的線(平面)的法向量
  • 以二維空間為例：w產生的線分隔兩邊
    • 也就是h(x)的正負，w所在的那一側為正

select g from h

Difficult: h is infinite
Idea: 從某一條線開始，進行更改(local search)

Perception Learning Algorithm(PLA)

A fault confessed is half redressed(知錯能改)

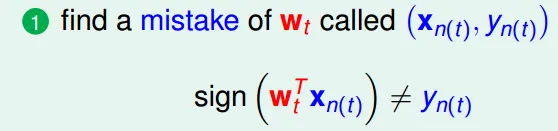

  1. find a mistake(which sign is wrong)

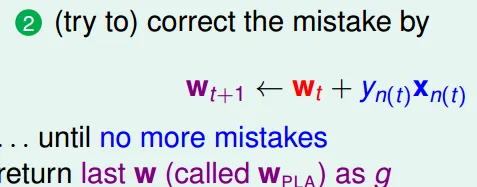

  2. correct the mistake
    • if real ans = +, new w = w + x(使w靠近正的點)
    • if real ans = -, new w = w - x(使w遠離負的點)
  3. keep doing until no mistake

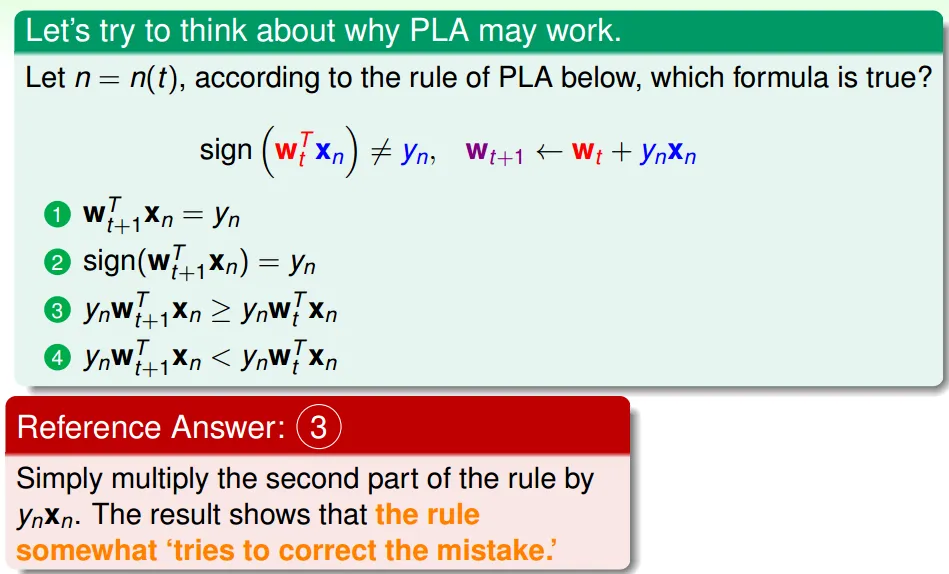

question
同乘$y_nx_n$
可看出錯誤變少：正確的時候，$w_nx_n$和$y_n$同號，所以$w_nx_ny_n$是正的

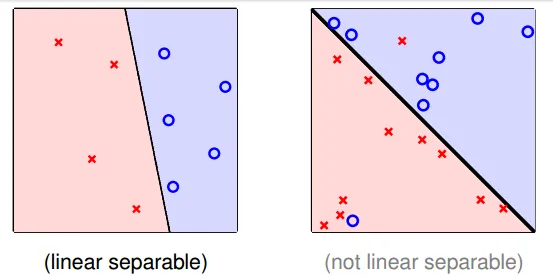

linear seperability

  • linear seperable
    • exist perfect w makes $sign(y) = sign(w_nx_n)$, n = 0~N
    • 用直線(平面)必可分成無錯誤的兩塊
  • if Data is linear seperable, then PLA can generate w to make no mistake

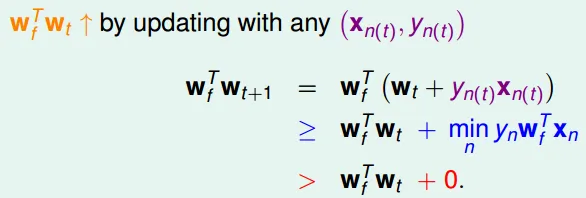

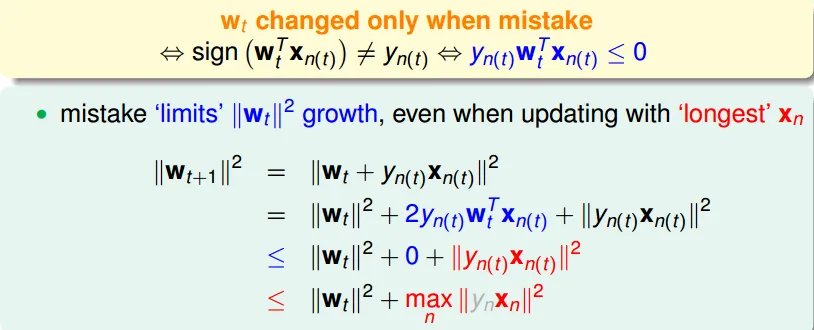

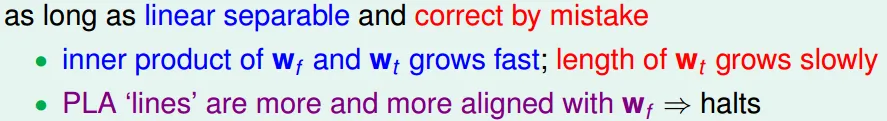

  • 每次改動使$w_f$(正解)和$w_t$的內積變大，也就是愈來愈接近

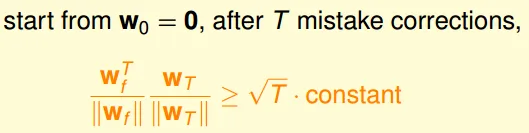

    • 但成長速度有限
      • $|W_t| <= sqrt(t) max(X_n)$

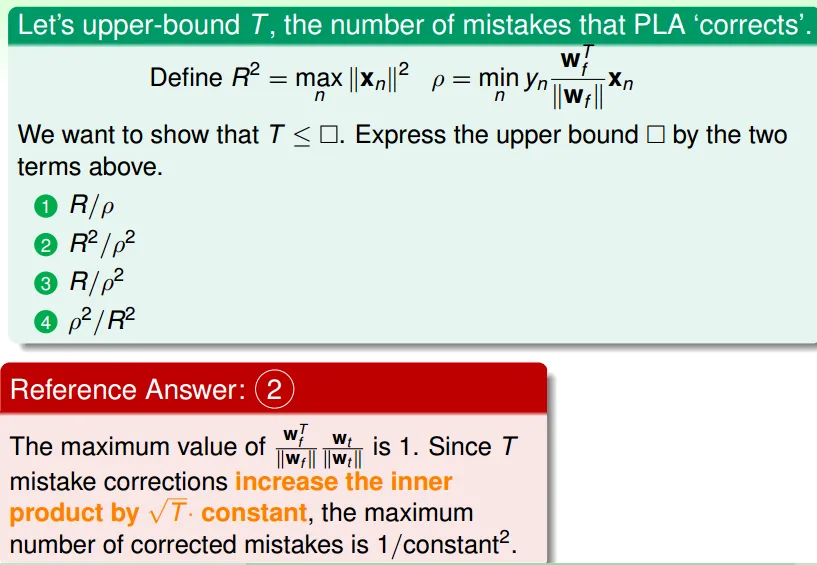

question

PLA Guarantee

  • advantage
    • simple to implement
    • fast
  • disadvantage
    • not fully sure how long it will take
    • assume linear seperable

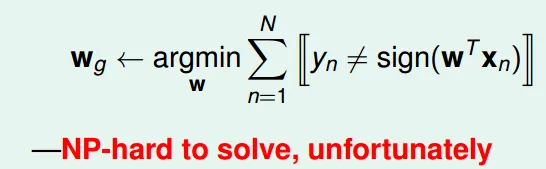

      • What if no linear seperate?(in reality)
      • 選出犯錯最少的
      • 這是個NP-HARD問題…

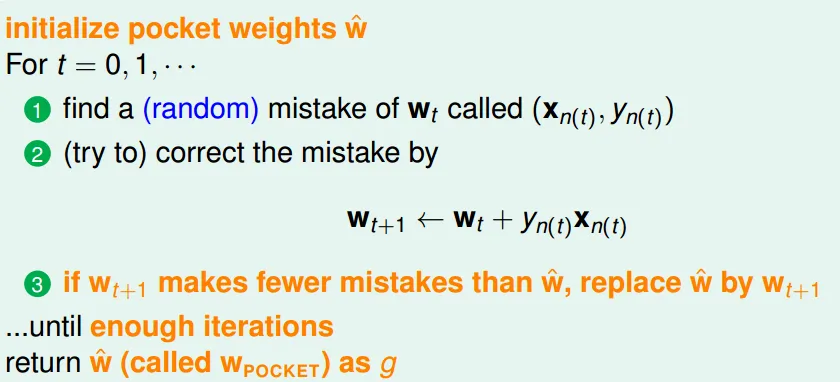

Pocket Algorithm(a little modified by PLA)

  • greedy
    • may not be the best answer: 可能是局部最佳解
  • slower than PLA(need to compare Wt+1 and Wt)

Chap03 types of learning

Different Output Space

Binary Classification

  • yes/no
  • core problem to build tools

Multiclass Classification(N output class)

  • Regression(迴歸分析)
    • output 為一數字
    • Ex. temperature, stock price
    • core problem to build statistic tools
  • Structured Learning
    • output $y$ = structures with implicit class definition
    • too many class → structure
    • Ex. Speech parse tree, sequence tagging(標詞性), protein folding

Different Data Label

Supervised Learning(監督式學習)

  • data with pairs of input and output

Unsupervised Learning

  • doesn't have output data(沒正確答案)
  • clustering(分群問題)
    • density estimation(find traffic dangerous areas)
    • unusual detection(find unusual data)
  • usually used in data mining

Semi-Supervised

  • given small amount of data with output, find output of other data
    • Ex. facebook face identifier
    • leverage unlabeled data to avoid 'expensive' labeling

Reinforcement Learning(增強學習)

  • natural way of learning(行為學派)
    • learn with 'seqentially implicit output'
    • if output is good, give reinforcement
      • probability of this input increases
    • if output is bad, give pushnishment
      • probability of this input decreases
  • Ex.
    • train a dog
    • online ADs
    • chess AI
  • 和gene algorithm類似

Different Protocol

Batch Learning

  • learn from known data
    • duck feeding(填鴨式)
  • very common protocol

Online Learning

  • sequential, passive data(不斷的得到新資料)
  • Every datum can improve g
  • PLA, reinforcement learning is often used with online learning
  • Ex. spam filter

Active Learning

  • strategically-observed data
  • machine can ask question(take chosen(input, output)pair to learn)
    • 關於自己不會(錯誤)的問題，拿相關的資料來學習
    • 比對有自信的答案(= 對答案)

Different Input Space

Feature <-> Input

Concrete Features

  • each input class represents some 'sophisticated physical meaning'
  • input 和 output 有相關(經過人類分類過)

Raw Features(未處理的資料)

  • 'simple physical meaing' -> difficult to learn
  • Ex. Digit Recognition
    • concrete feature: symmtry, density
    • raw feature: matrix of image bits

Abstract Features

  • 'no physical learning' -> the most difficult to learn
  • need 'feature conversion'
  • Ex. Rating Prediction Problem
    • 從歌曲評分抽出feature: 喜好, 歌的性質......

In general machine learning, those three feature types will be used

Chap 04 Feasibility of Learning

  • learning will be stricted by limited data(no free lunch)
  • learning from D (to infer something outside D) is doomed

Statistics

  • Real environment -> unknown
  • Sample data -> known
    • Can sample represent the real?
  • 有極小可能無法代表real status

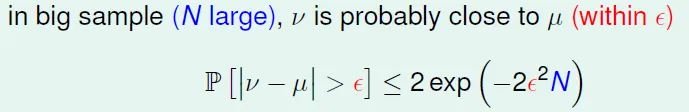

Hoeffding’s Inequality

  • v and u are error rate of certain h in sample and real data
  • larger sample size N or looser gap(誤差)
    • higher probability to approximate real

Error between hypothesis and target function can be inferred by data

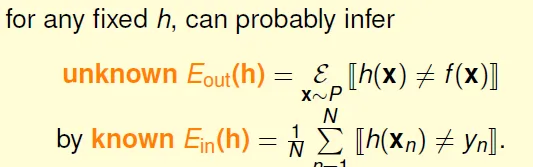

Ein and Eout

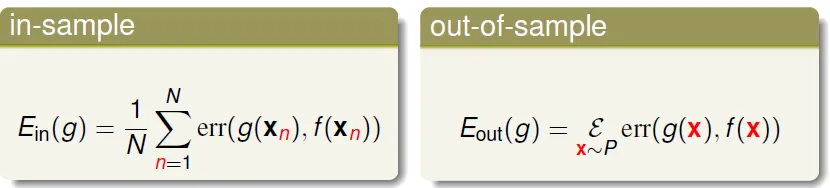

in-sample error(Ein) and out-of-sample error(Eout)

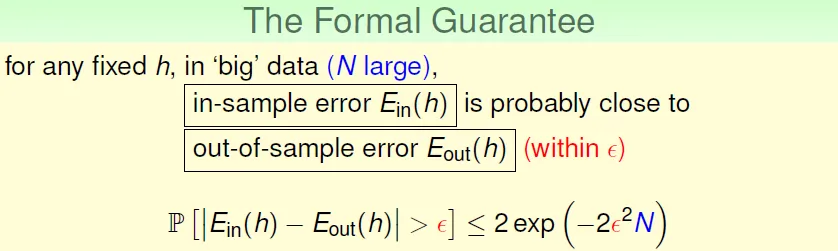

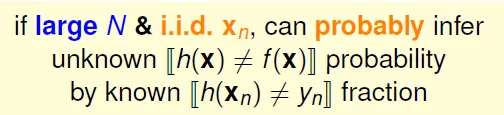

Guarantee: for large N, Ein(h) ~= Eout(h) is probably approximately correct (PAC)

Q: if 150 people flips a coin 5 times, and one of them gets 5 heads. A: Probability is > 99%
→ 做愈多次，遇到的BAD sample(Eout 和 Ein 差很多; sample和實際差距過大)的機率愈大
→ Real learning: Algorithm choose the best h which has lowest Ein(h) among H

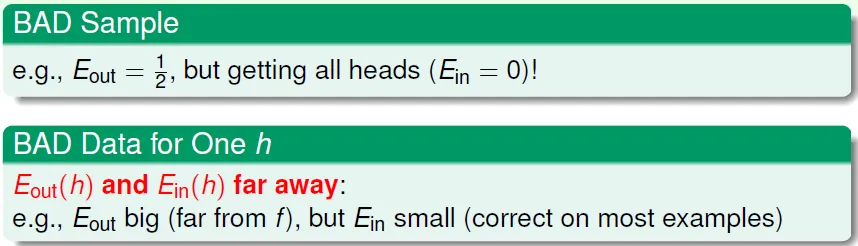

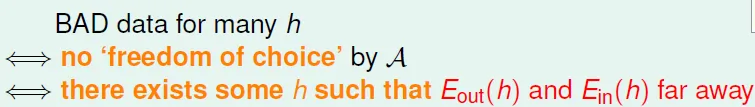

  • Bad Data for a H
    • 存在 h 使 Ein(h) 和 Eout(h) 相差很大
      • 由 hoeffding 知道抽到bad data的機率很小

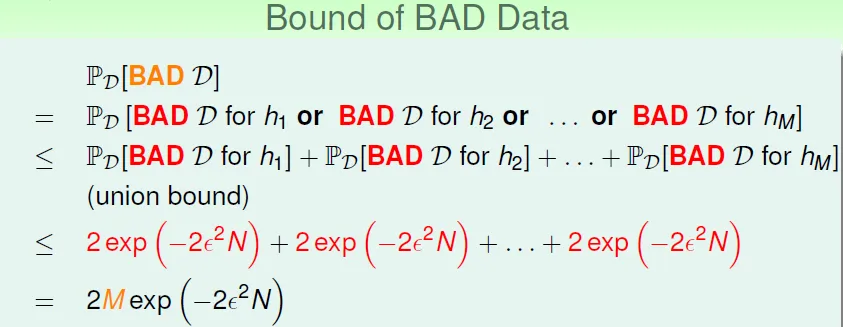

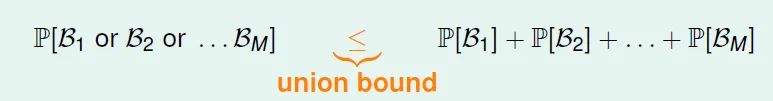

  • hypothesis的個數愈多，抽到BAD data的機率愈高
    • 安全的data(在任何h都不是bad data)的比例 若很高，則學到的東西可能不好

若hypothesis set的大小是有限的話，只要N夠大，Eout ~= Ein
但perceptron不是finite(有無限多種分隔可選)

Chap05 Training versus Testing

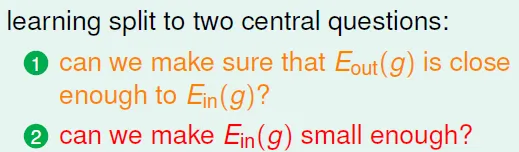

g is similar to f ↔ Eout(g) ~= Ein(g) ~= 0

But need train and test

  • Train: find hypothesis that can fit sample data
  • Test: take good sample data that is similar to exact data

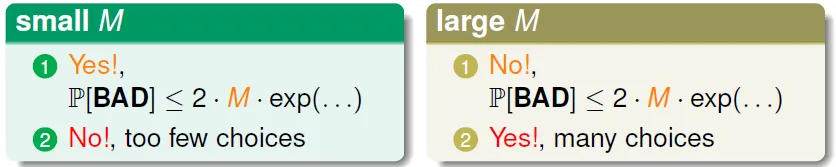

How to decide the number of hypothesis set

Cannot both satisfied!

Todo: Find a finite value $m_H$ can replace infinite M

Idea: M is overestimated, we use classification:
how many lines => how many kinds of line(that makes different output)

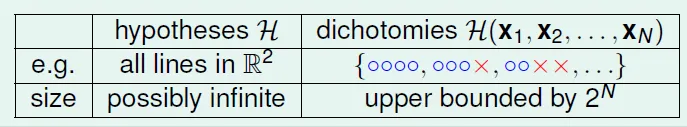

This method is called Dichotomies(二分法): Mini-hypotheses

input types of lines
1 2
2 4 (00, 01, 10, 11)
3 8
4 14 (2 lines that is not
linearly seperable)
N effective(N) <= $2^N$

Growth Function $m_H$ = max number of dichotomies(max number of different outputs)

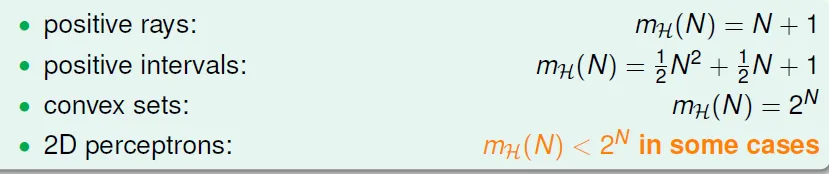

Types of Growth Function

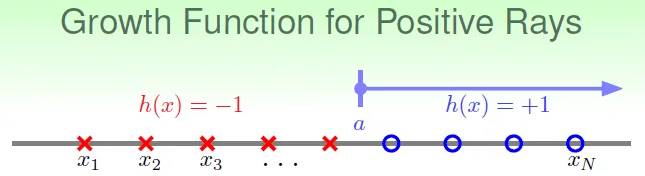

  • Positive Rays
    • $m_H(N)$ = N + 1

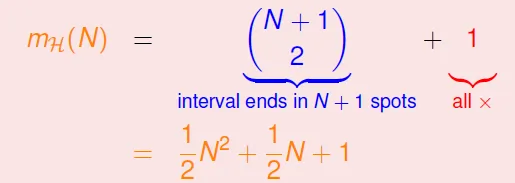

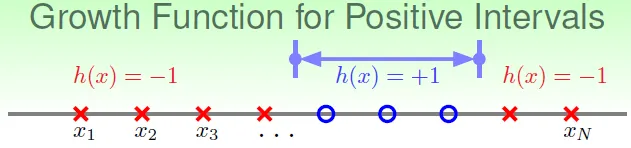

  • Positive Intervals
    • $C^{N+1}_2 + 1$
  • Convex Sets
    • worst case: every point make a circle
    • $m_H(N) = 2^N$ -> exists N inputs that can be shattered(所有output皆可產生)


Now $m_H(N)$ is finite, but exponential
Question:Can we find polynomial instead of exponential?

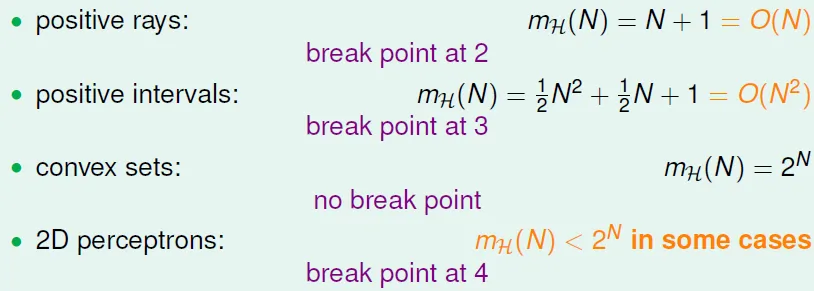

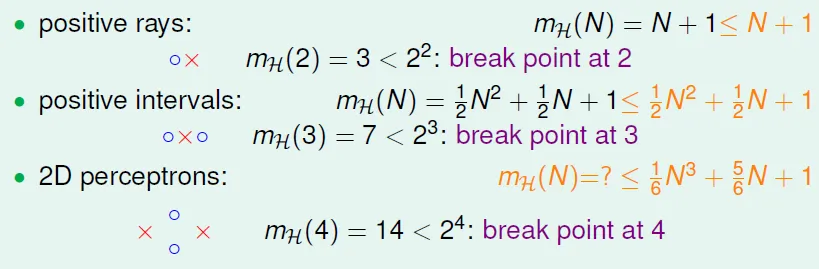

Break Point of H

if all possible k inputs can't be shattered by H
k = break point for H

2D perceptrons: break point at 4

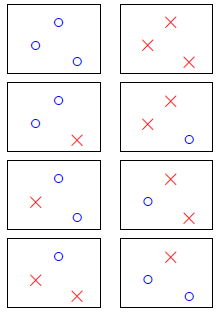

3 inputs: exist at least one input that can shatter
4 inputs: for all inputs, no shatter

If there is no breakpoint, we can only find exponential($2^N$) increase
If there is a breakpoint, we can find polynomial($O(N^k)$)increase
breakpoint愈小，hypothesis set 成長的速度受到愈多限制(因為無法shatter，所以hypothesis數比exponential小)

Chap06 Theory of Generalization

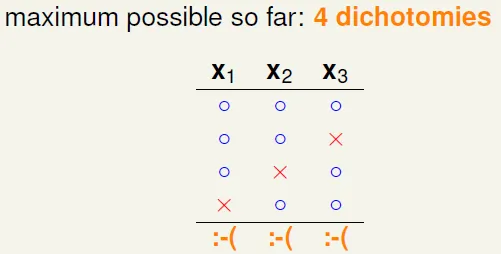

Q: maximum possible $m_H(N)$ if input number(N) = 3 when breakpoint(k) = 2?
A: x1, x2 cannot shatter, and so does x2, x3 and x1, x3
→ When N > breakpoint, break point restricts $m_H(N)$ a lot!

idea: prove $m_H(N) \leq$ poly(N) if N > k

Bounding function

bounding function B(N, k): maximum possible $m_H(N)$ when break point = k

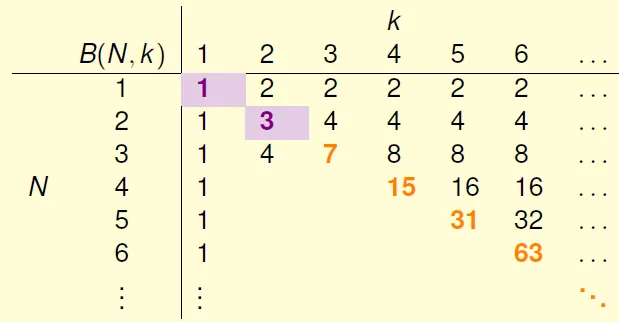

Table of bounding function(incomplete)
B(N, k) = $m_H(N) = 2^N$ when N < k(shatter)
B(N, k) < $m_H(N) = 2^N - 1$ when N = k(至少比shatter少一種)

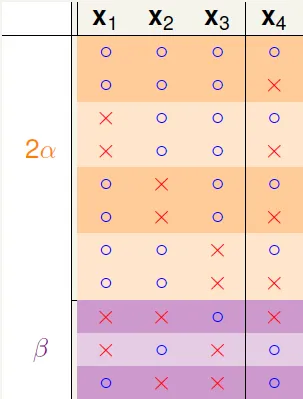

When N > k :Using reduce, Ex. B(4,3)
α: dichotomies on (x1, x2, x3) with x4 paired
β: dichotomies on (x1, x2, x3) with x4 no paired

Because B(4,3) can't shatter any 3 inputs
→ α + β can't shatter at (x1, x2, x3)
→ α + β $\leq$ B(3,3)

Because B(4,3) can't shatter any 3 inputs and x4 is already paired
→ α can't shatter any 2 inputs at (x1, x2, x3)
→ α $\leq$ B(3,2)

B(4,3) = 2α + β $\leq$ B(3,3) + B(3,2)
Generalized: B(N,k) $\leq$ B(N-1,k) + B(N-1,k-1)

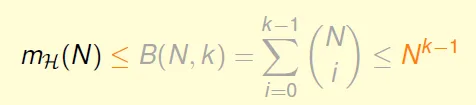

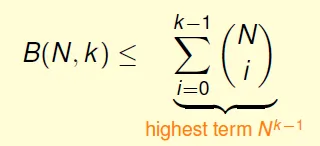

By calculation: $m_H(N) \leq B(N,k) \leq N^{k-1}$

Conclusion: $m_H(N)$ is polynomial if break point exists for N >= 2 & k >= 3!!


'<=’ can be ‘=’ actually -> not easy proof(skipped)

Vapnik-Chervonenkis (VC) bound

Proof: BAD Bound for General H

  1. Now Ein(h) finite, but Eout(h) still infinite(Eout的點有無限個)

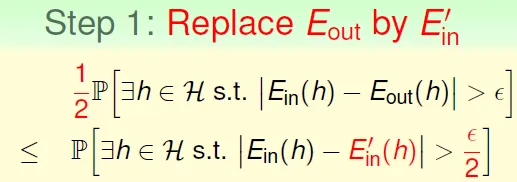

    1. use ghost sample data Ein' to replace(想像再sample一次會產生的Ein'，將這段資料作為eout)
    2. 圖中Ein離Eout很遠，是bad data，只要Ein'在Eout附近，Ein'也會離Eout很遠
    3. Eout 乘1/2，使其成為不等式

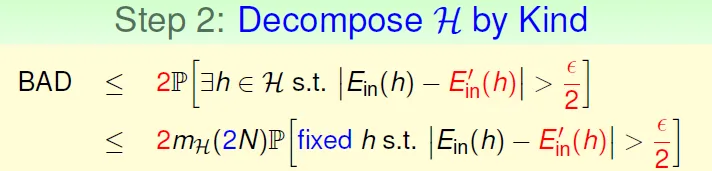

  2. 將bad data相似的hypothesis分在一起
    1. 總共有2N個data(Ein + Ein') → $m_H(2N)$
    2. 因為有了$m_H()$函數，變成只考慮固定的hypothesis

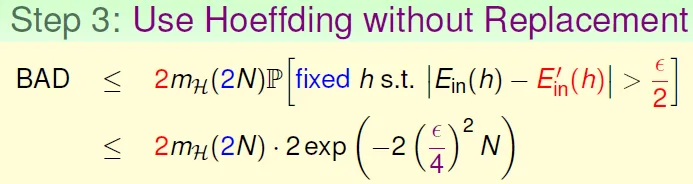

  3. Use Hoeffding without Replacement
    1. 可視為2N個點取N個點，sample為Ein，剩下為Ein'(不放回去)
    2. 使用 'Hoeffding without Replacement'： 公式和hoeffding 一樣
    3. Hoeffding只用於單一hypothesis，所以需要步驟2

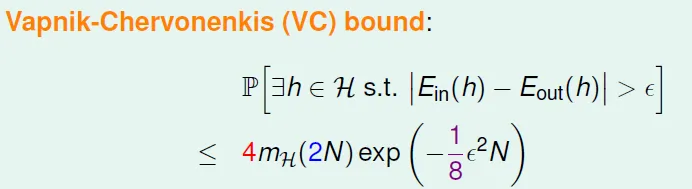

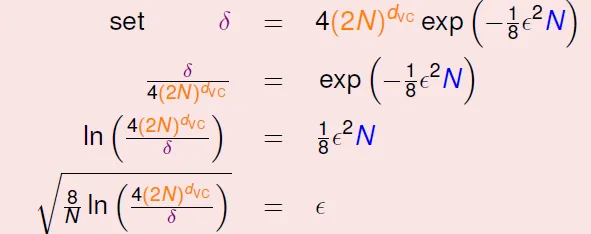

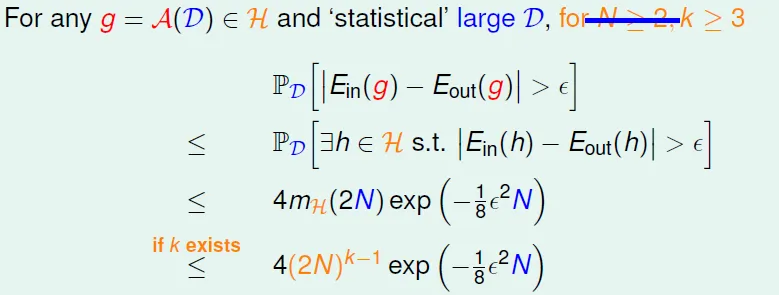

Vapnik-Chervonenkis (VC) bound

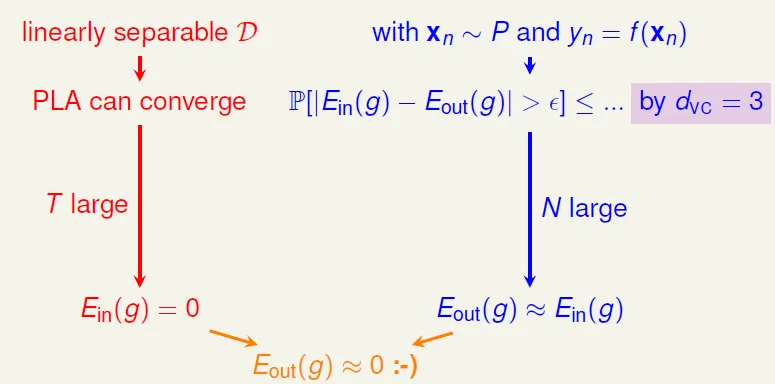

→ proved that learning with 2D perceptrons feasible!

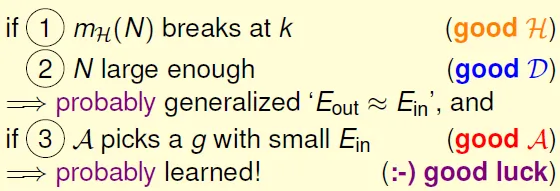

You need to let everything good to learned well

Chap 07 VC Dimension

VC Dimension
= maximum non-break point = (minimum k) - 1
= largest N that can shatter

2D perceptron review
How does PLA in more than 2 dimension?

  • 2D → 3
  • d-dimension perceptron
    • d_VC = d+1

Proof

  1. d_VC > d+1 → d+1 can shatter

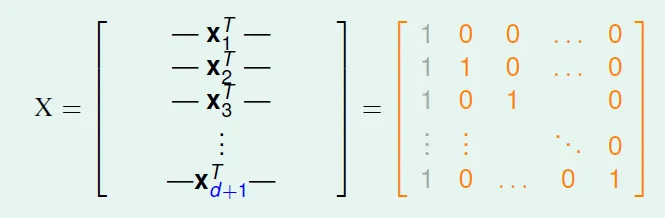

    input matrix which is invertible
    for any y, we can find w such that sign(Xw) = y → $w = yX^{-1}$ → it can shatter

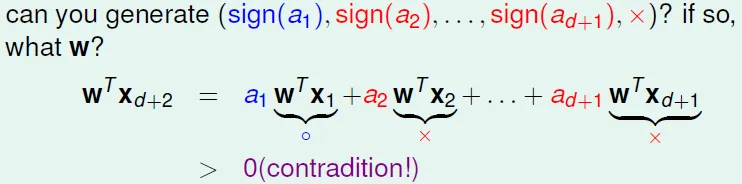

  2. d_VC < d+1 → d+2 can't shatter

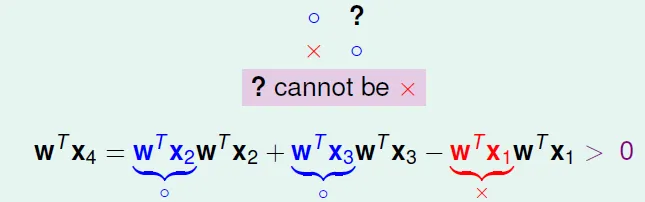

    linear dependence restricts dichotomy
    if row > column, it would cause linear dependence
    for any input, we can find some $a_n$ that makes an output can't happen → no shatter

freedom

dimension, number of parameters, hypothesis quantity(M) → degrees of freedom
d_VC(H) = effitive binary degrees of freedom = powerfulness of H

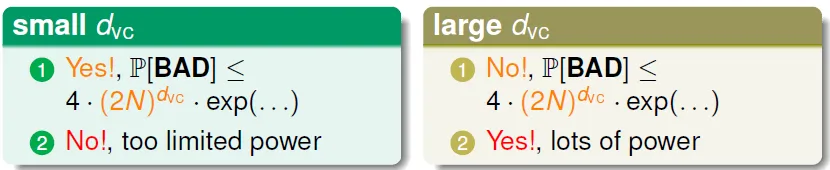

The more powerful it is (d_vc bigger), the more probability to get bad data D_vc

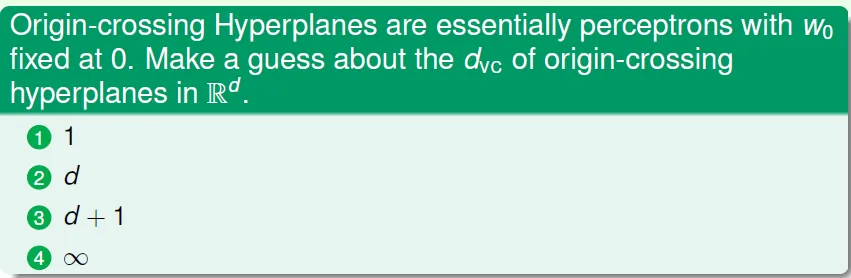

question:
比perceptron少一個parameter → d

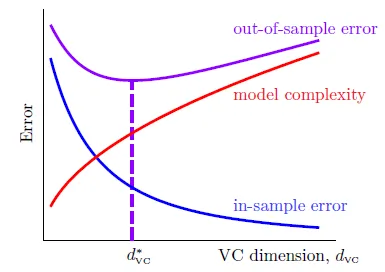

penalty for model complexity
model愈強，Ein愈小，和Eout誤差愈大

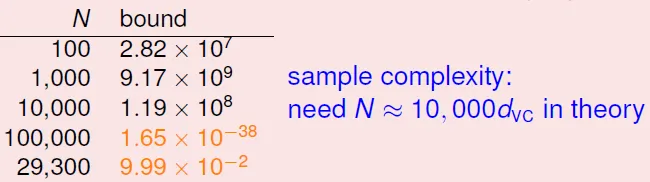

number of data(N) should be 10000 d_vc in theory; 10 d_vc is enough in practice, because VC bound is loose

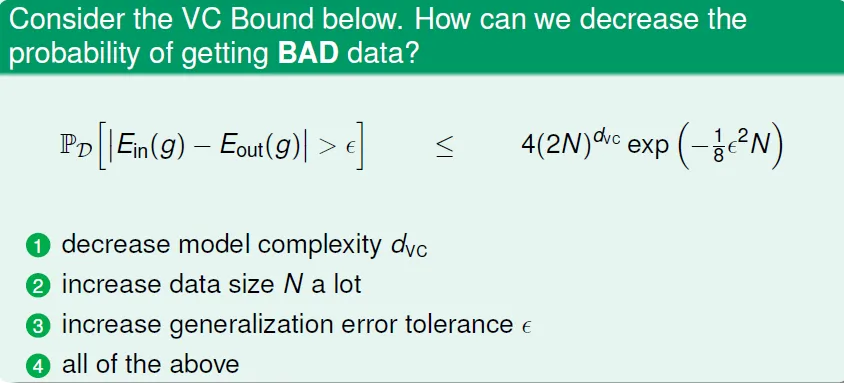

question:
all of above(increase power of model)

Chap08 Noise and Error

  • Noise in y
    • Example: good customer mislabeled as bad
  • Noise in x
    • Example: incorrect feature calculation
  • Would get probabilisic output y ≠ h(x) by given P(y|x)

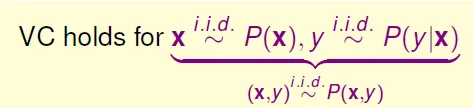

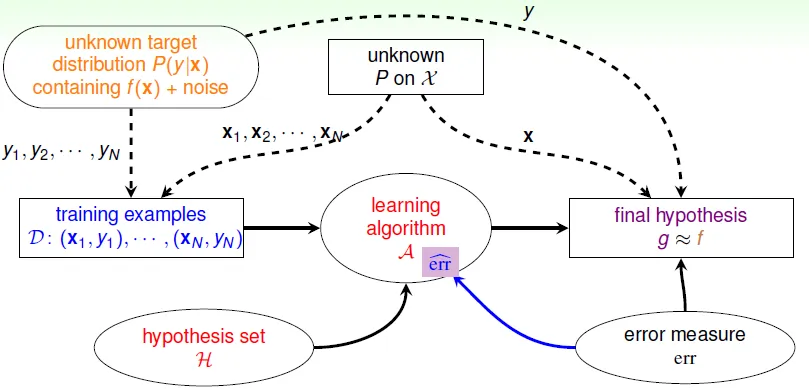

Does VC bound works in noise? Yes, if i.i.d.(Independent and identically distributed)
→ we can view as 'ideal mini-target' + noise
→ learning goal is to predict ideal mini-target(which is Y that has high P(Y|X) given X) on often seen inputs(X with high P(X))

Eout use expectation instead of Σ , $err$ means pointwise error(only consider a point x)

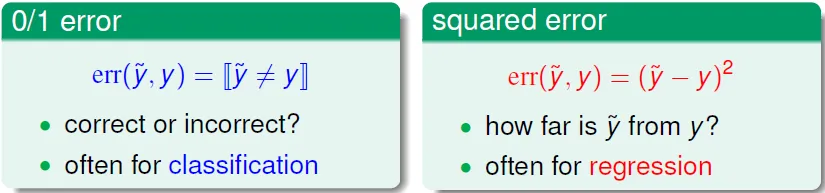

Error Measure

  • classification(0/1 error)
    • minimum flipping noise(最少錯誤的output)
    • NP-hard to optimize
  • regression use squared error
    • minimum gaussian noise(output和正確答案的平方差最小)

Error is **application/user dependent **

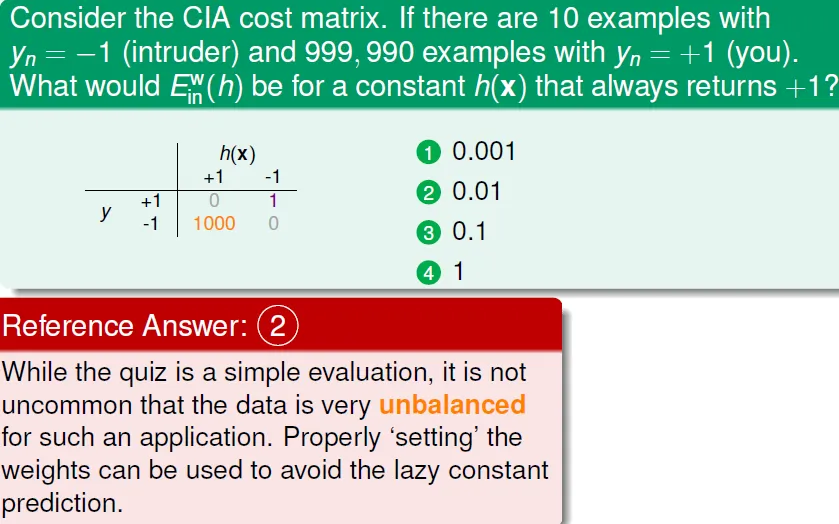

  • CIA fingerprint login error
    • not allow predict 0 to 1
  • Supermarket member login error
    • not want to predict 1 to 0
  • error weight is not the same!

Example: pocket

  • modify Ein to $E^w_{in}$(with weight)
  • weight愈高的錯誤愈容易被選來修正

權重可以套用在許多機器學習的演算法

algorithm choosing

Algorithmic Error Measures $\hat{err}$

  • True
    • error cannot be ignored or created
  • plausible(可用性)
    • 0/1 error
    • squared error
  • friendly(較容易的演算法)
    • close form solution(有公式解，如Chap09的linear regression)
    • convex objective function(可以持續更新的，如PLA)
  • $\hat{err}$ is key part of many algorithms

參考資料

Coursera機器學習基石
C老師上課講解
